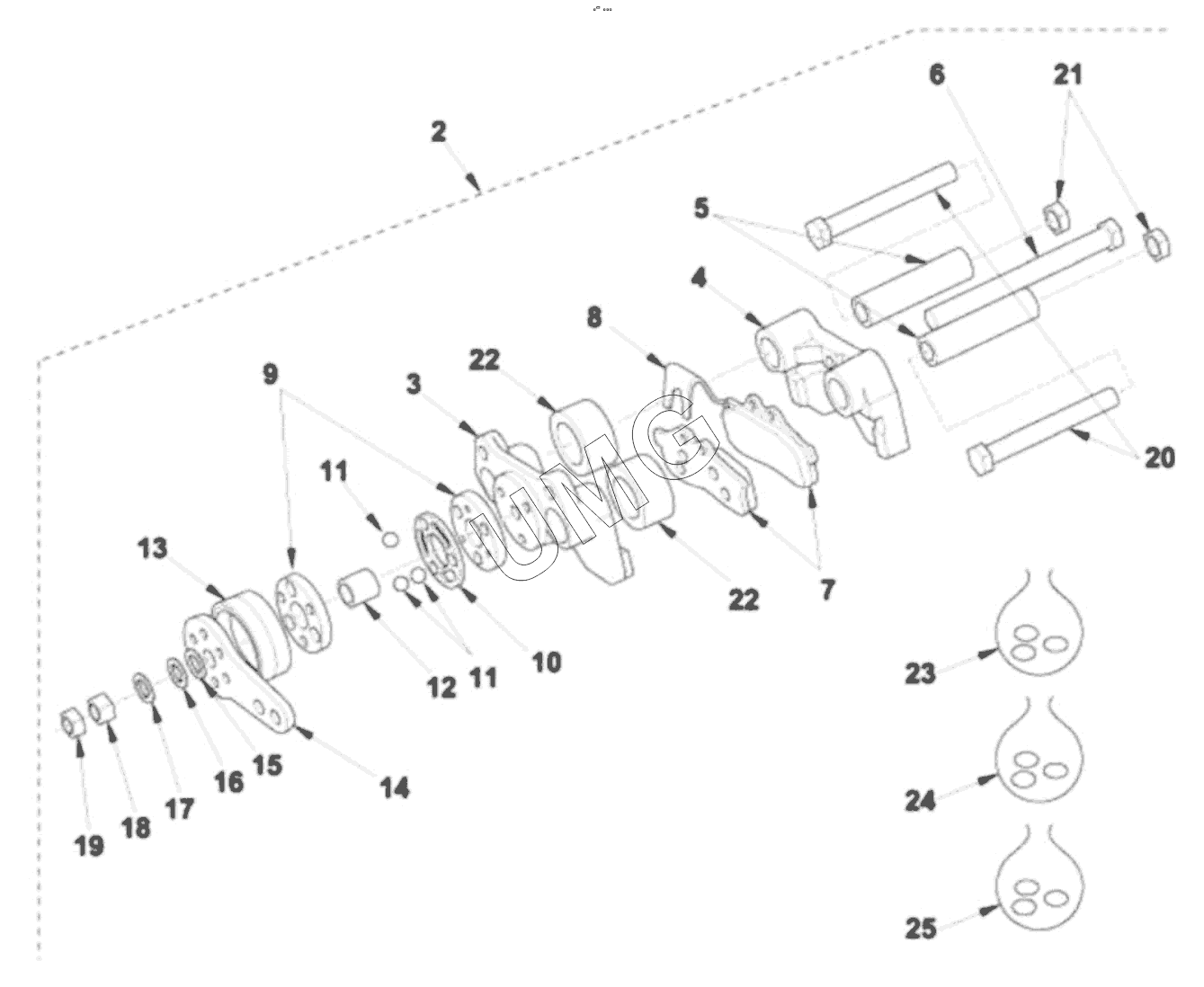

TLB 825. BRAKE CALIPER
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1K0160 | Задний мост | |
| 2 | 6193423M91 | тормоз | |
| 3 | Plate | Plate | |
| 4 | Plate | Plate | |
| 5 | Bushing | Bushing | |
| 6 | Bolt | Bolt | |
| 7 | Braking pad | Braking pad | |
| 8 | Spring | Spring | |
| 9 | Cam | Cam | |
| 10 | Ring | Ring | |
| 11 | Ball | Ball | |
| 12 | Sealing | Sealing | |
| 13 | Cover | Cover | |
| 14 | 6193747M1 | Рычаг | |
| 15 | Washer | Washer | |
| 16 | Washer | Washer | |
| 17 | Washer | Washer | |
| 18 | Nut | Nut | |
| 19 | Nut | Nut | |
| 20 | Bolt | Bolt | |
| 21 | Nut | Nut | |
| 22 | Bushing | Bushing | |
| 23 | 6193748M91 | Комплект облуживания | |
| 24 | 6193749M91 | Комплект облуживания | |
| 25 | 6193750M91 | Комплект облуживания |
