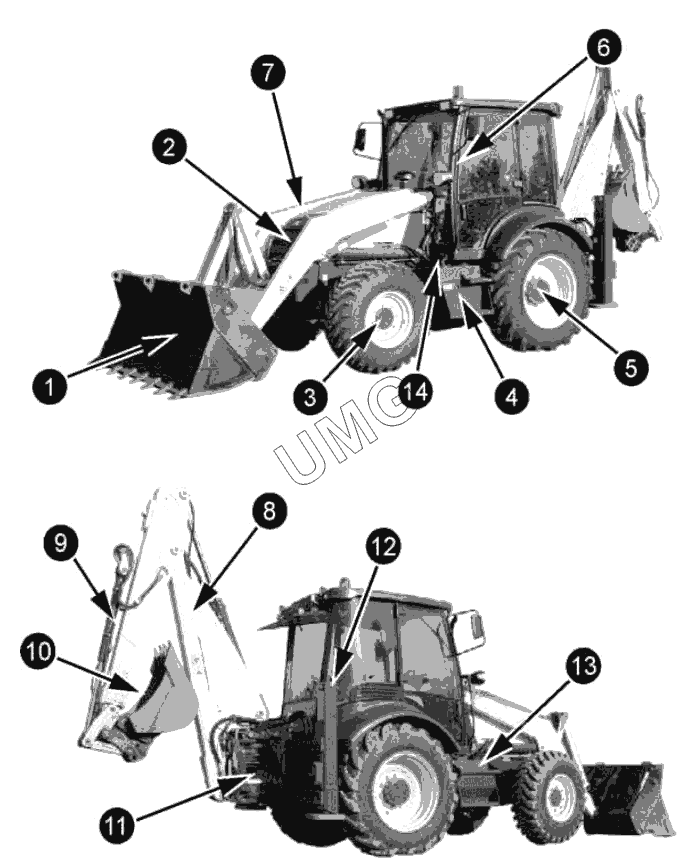

TLB 825. BACKHOE LOADER
1
2
3
4
5
6
7
8
9
10
11
12
13
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Loader bucket | Loader bucket | |
| 2 | Loader boom | Loader boom | |
| 3 | Wheel drive front steering axle | Wheel drive front steering axle | |
| 4 | Hydraulic reservoir | Hydraulic reservoir | |
| 5 | Rear axle | Rear axle | |
| 6 | Operator's cab | Operator's cab | |
| 7 | Engine hood | Engine hood | |
| 8 | Boom | Boom | |
| 9 | Stick | Stick | |
| 10 | Bucket | Bucket | |
| 11 | Sideshift carriage | Sideshift carriage | |
| 12 | Stabilizers | Stabilizers | |
| 13 | Fuel tank | Fuel tank |
